Description

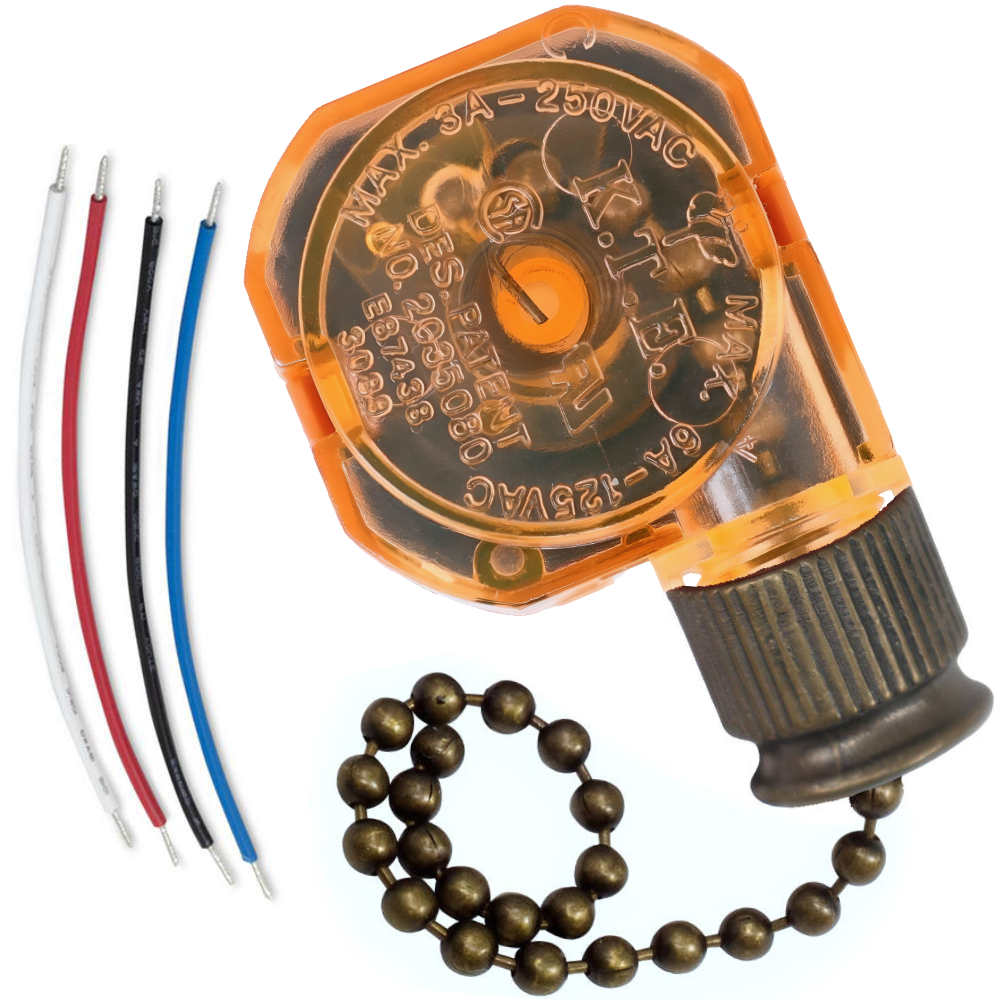

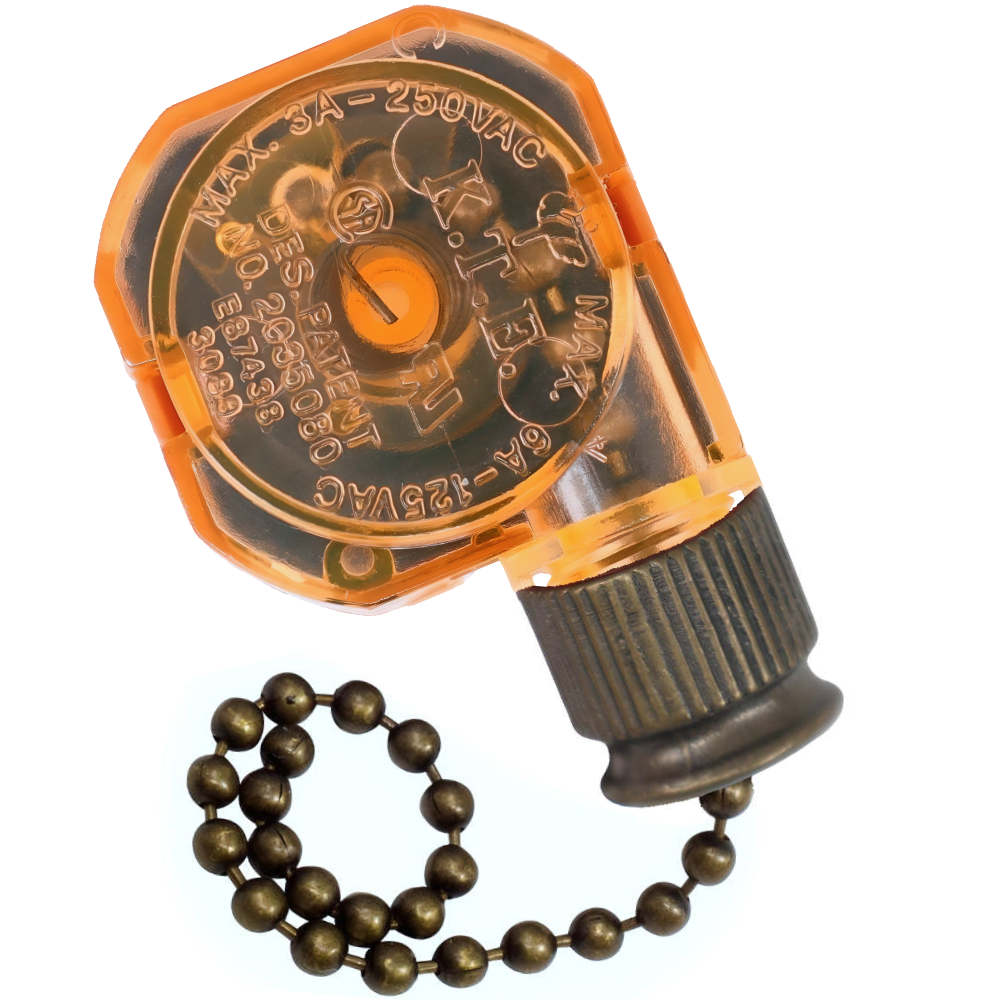

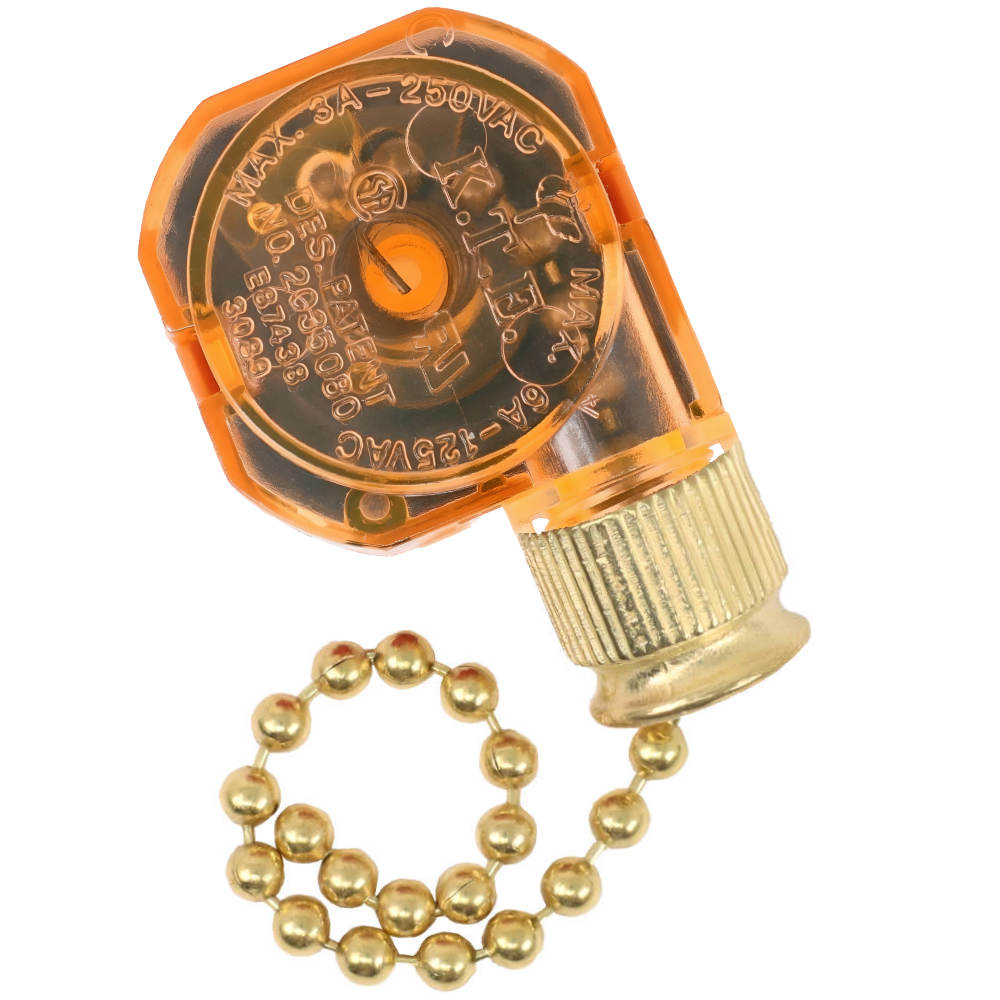

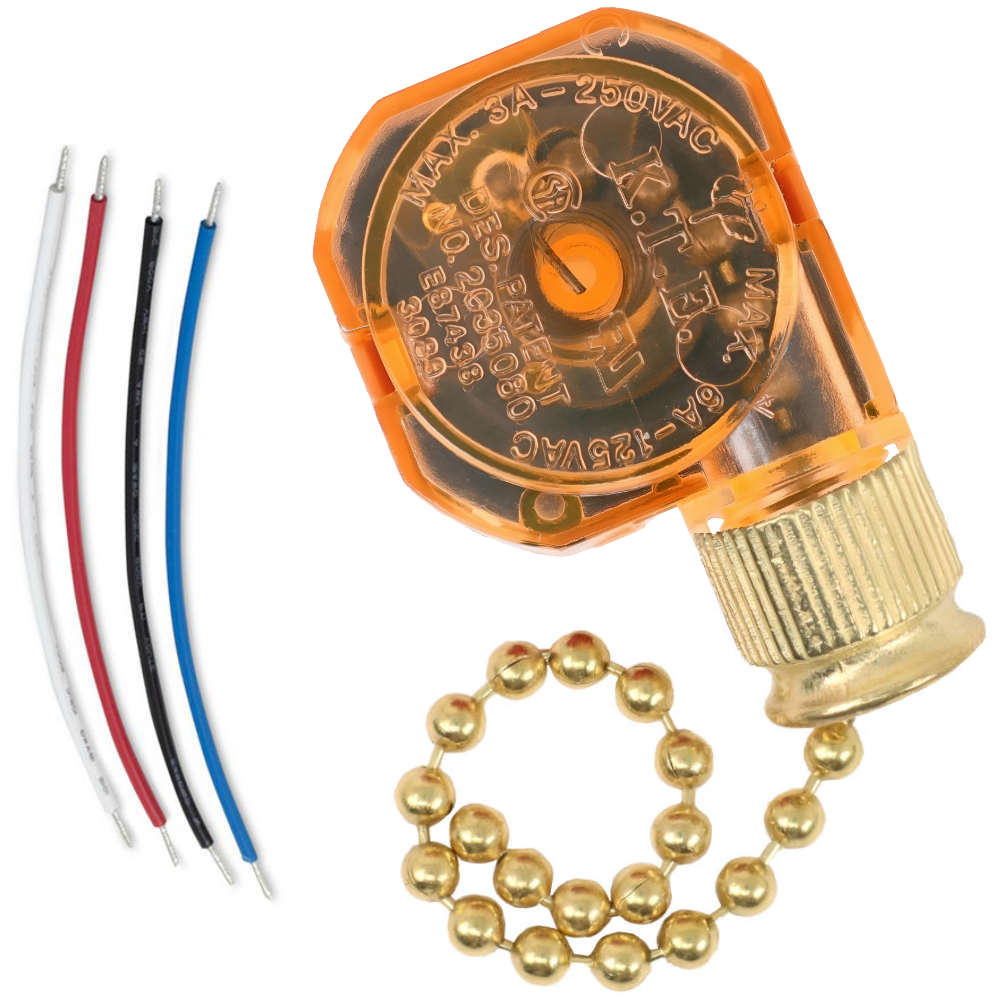

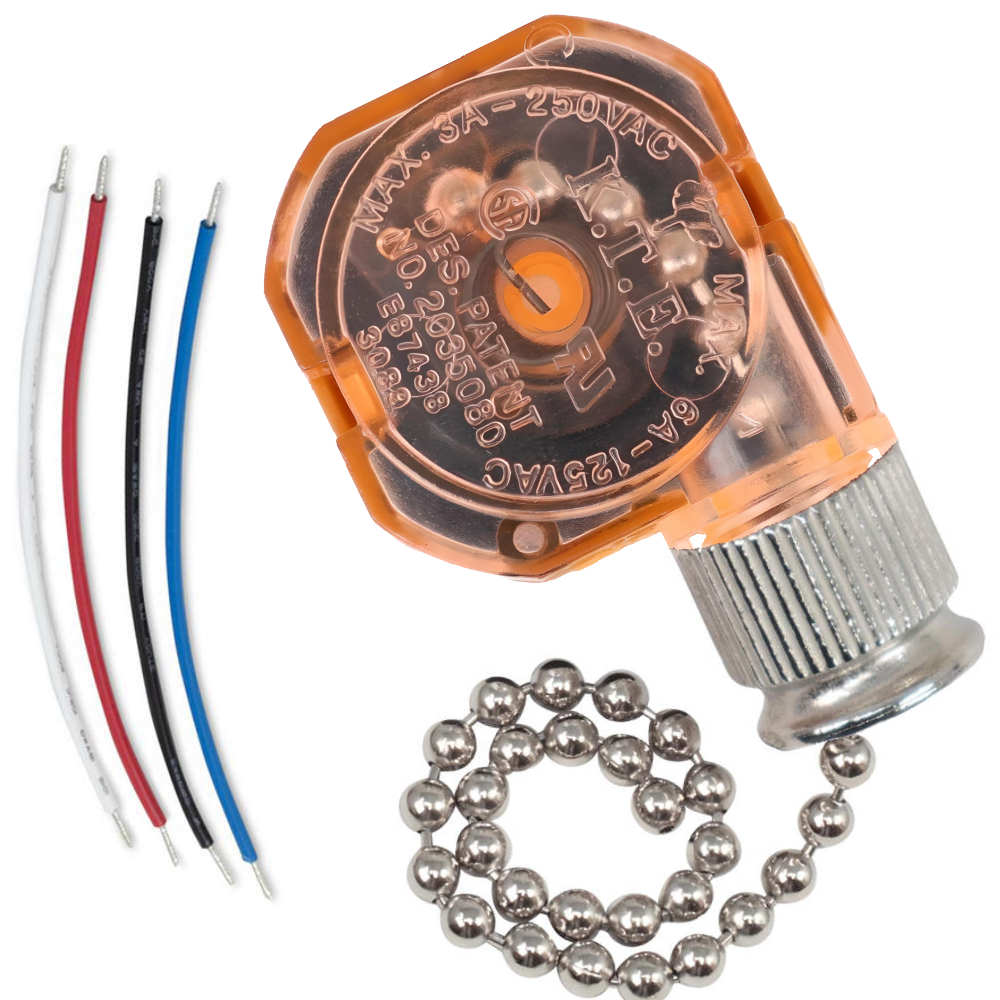

- Designed with DIY repairs in mind, the KTE 3089 Circuit M 4-wire fan switch includes pre-soldered extension wires, making installation straightforward and efficient. This switch is perfect for homeowners seeking a quick and hassle-free solution for ceiling fan repairs.
KTE 3089 Circuit M Switch Specifications
- Condition: New
- Model number: KTE 2035080 E87438 3089M
- Power Rating: 3A at 250VAC, 6A at 125VAC, ideal for safe and efficient DIY projects
- Equipped with push wire terminals and pre-soldered wires for faster installation
- Function: Off, High, Medium, Low
- Internal positions: OFF, L-1, L-2-3, L-3
- UR (UL) approved in US and Canada
- Suitable for UL 1015 AWG#18 wire or UL 3321 AWG#18 wire
- Material: Plastic housing
- Replaces ZE-268S6
Important: If these conditions aren’t met, the switch will not work
- Ensure the black wire is attached to terminal “L”

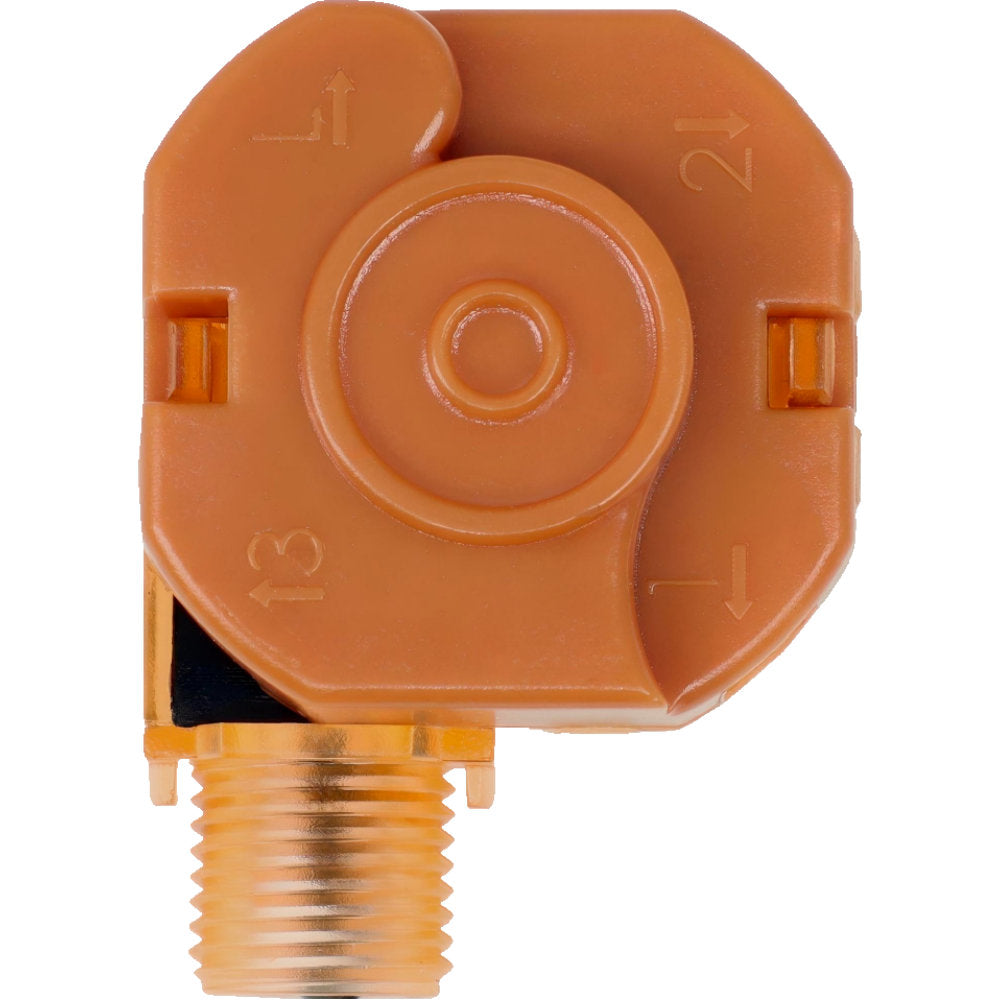

- Confirm the terminal sequence is L-2-1-3 in a clockwise direction
Useful Links
- For step-by-step installation help, ideal for DIYers, check our Wiring instructions page
- Switch compatibility page
