Description

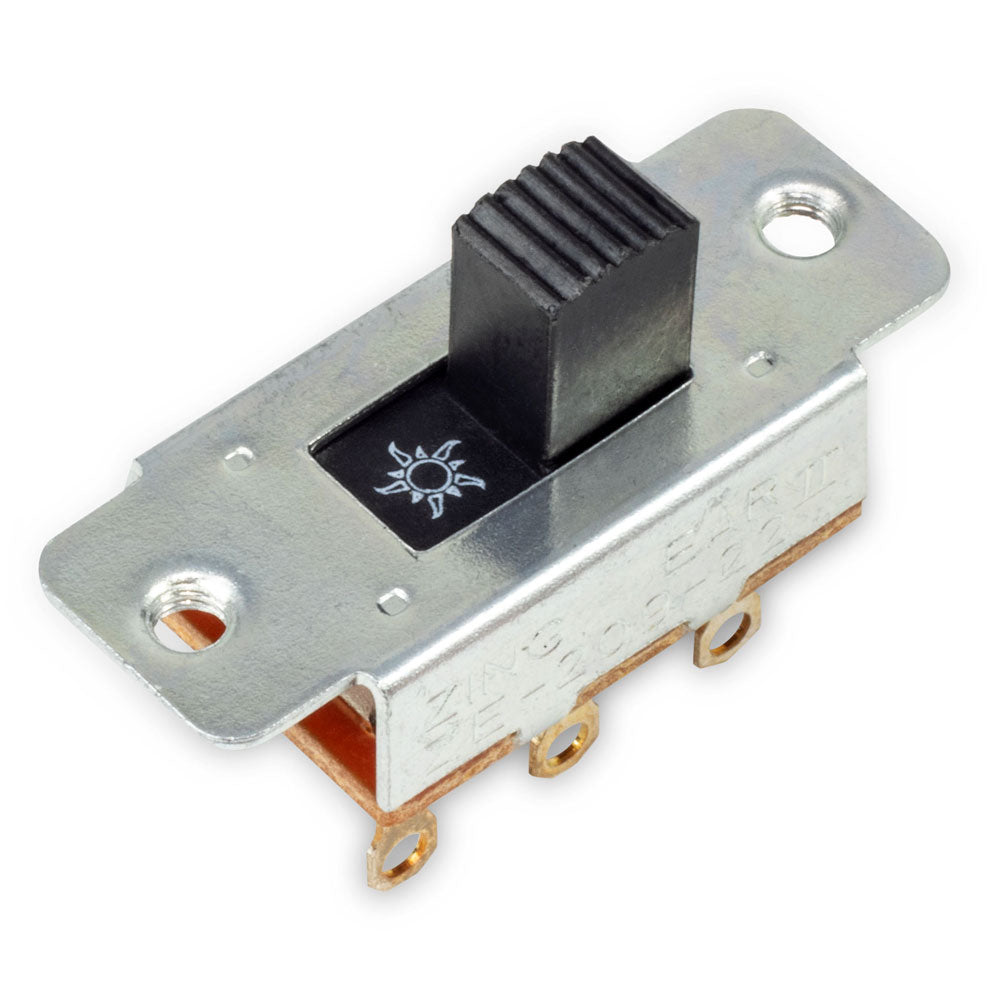

Zing Ear ZE-209-22 slide ceiling fan reverse switch used to change or reverse fan direction during winter and summer seasons. It is easy to install and mounts flush with the surface of the ceiling fan motor or base.
Zing Ear ZE-209-22 Specifications
- Condition: New

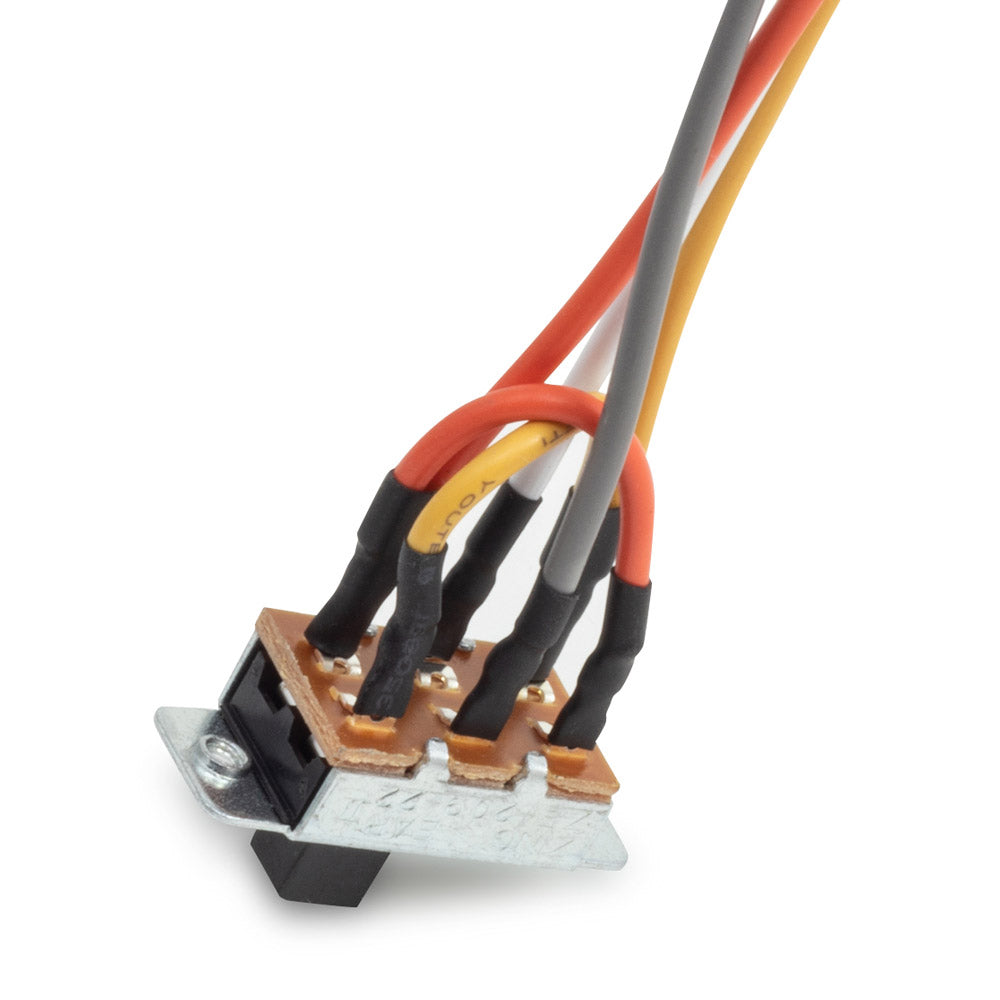

- Available in two styles: with and without attached wires
- Function: DPDT (On-Off-On)
- Electrical rating: 6A 125VAC - 3A 250VAC
- 28.5MM mount hole
- (UR) UL recognized in US and Canada
ZE-209-22 is Compatible with
- Shine Top LS-101H, LS101H
- Sun-Lite J-301, J301
- Centen LST-101, LST101
- Canal SL13B
This slide switch fits many ceiling fans including
- Hampton Bay fans
- Harbor Breeze fans
- Casablanca fans
- Hunter fans including model numbers:
- 23669-100
- 51010, 51011, 51014, 51015, 52037
- 52038, 52039, 52040, 52080, 52081
- 52082, 52089, 51014, 51041, 52090
- 53011, 53012, 53039, 53040, 53054
- 53060, 53061, 53069, 53070, 53071
- 53074, 53075, 53102, 53103, 53104
- 53105, 53114, 53115, 53116, 53119
- 53125, 53126, 53127, 53202, 53240
- 53242, 53253, 54017, 54018, 54061
- 54062, 54068, 54070, 54074, 54091
- 54092, 54097, 54098, 54108, 54110
- 54111
It is also compatible with light kit assembly, switch housing assembly and wire harness including part numbers:
- K226602H01, K226602H03, K226701H03
- K008901H02, K008901H03, K008902H01
