Description
- Zing Ear ZE-268s1 4 wire pull chain fan switch replacement - compatible with ceiling fans from brands like Hampton Bay, Hunter, Harbor Breeze, Casablanca, Westinghouse, and more

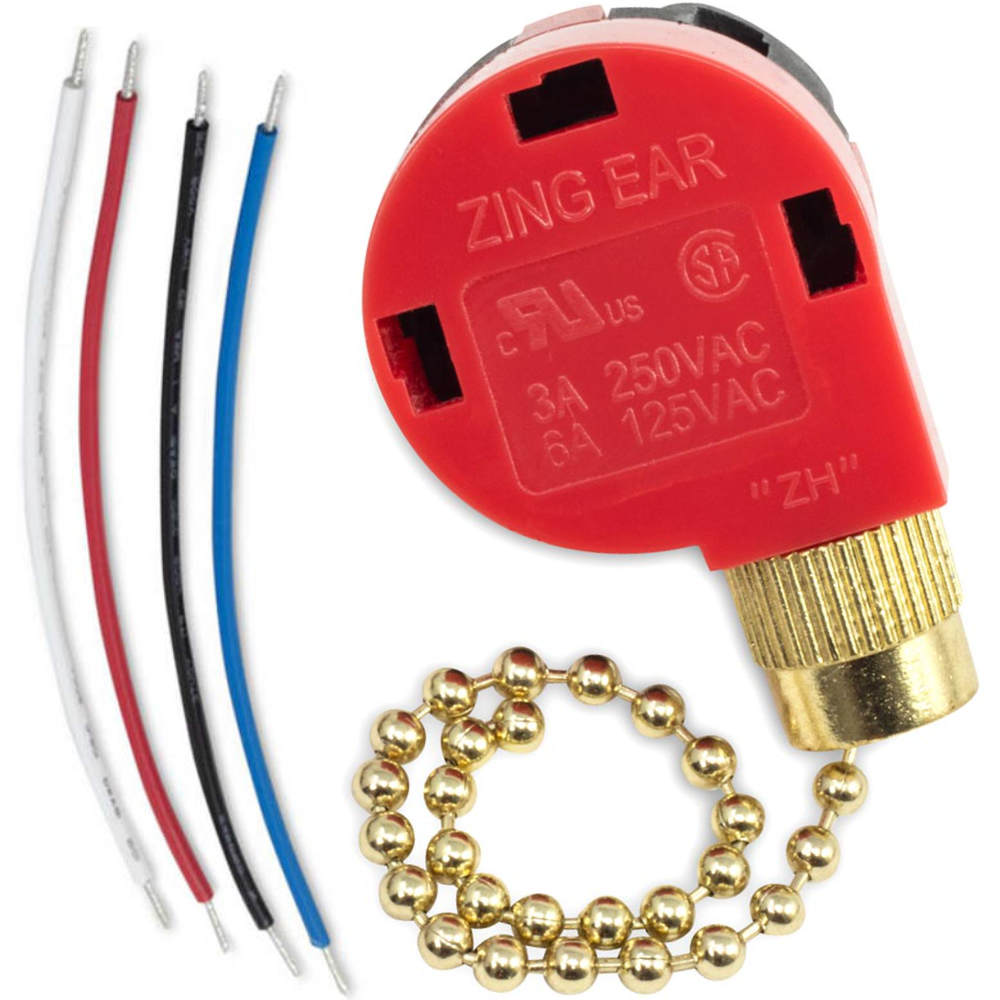

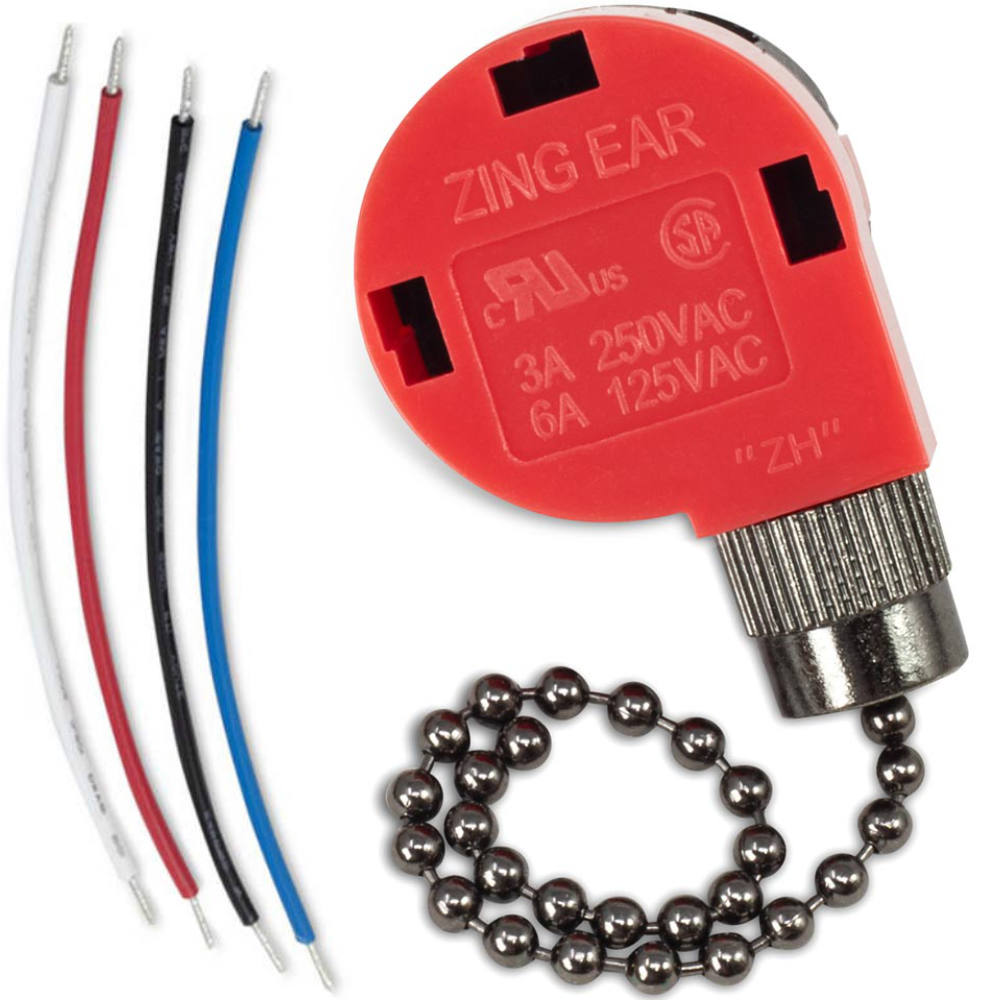

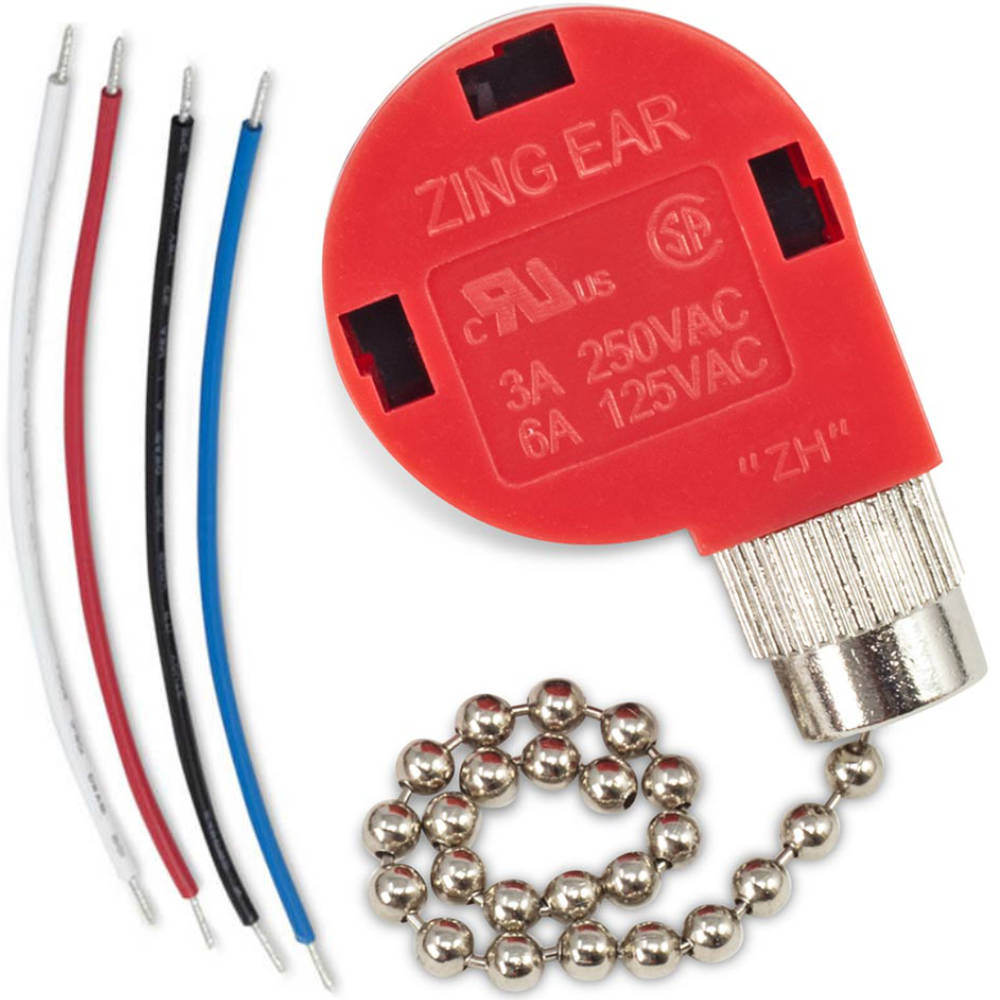

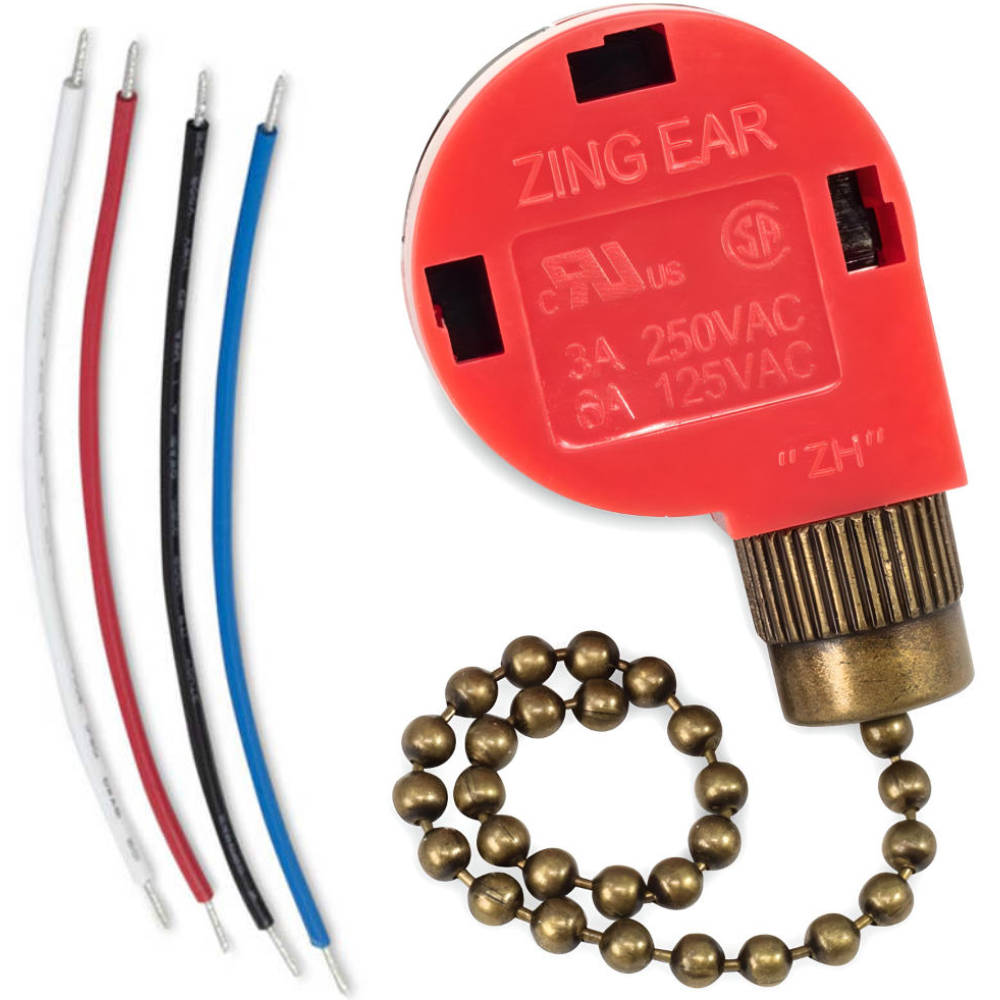

- Includes four extension wires for extending the length of existing fan wires. The wire ends are pre-soldered for easy attachment to the switch
Zing Ear ZE-268S1 Switch Specifications
- Condition: New
- Model number: ZE-268S1
- Electrical rating: 6A 125VAC - 3A 250VAC
- Function: Off, High, Medium, Low
- Internal positions: Off, L-1, L-2, L-3
- UR (UL) recognized in US and Canada E89885
- CSA approved
- Material: Plastic housing
Compatible with
- Zing Ear ZE-208s
- Shine Top LS-102-01 (Black wire attached to terminal “L” and the terminal number is L-1-2-3 in the counterclockwise direction)
- GC35-0867
- Sun-Lite SL-A-200A
- Wu Pin LJY-209A and LJY-280A 4-hole (black wire is attached to terminal “L” and the terminal number sequence is L-1-2-3 in the counterclockwise direction)
- Well Tec 101 E117997 (black wire is attached to terminal “L” and the terminal number sequence is L-1-2-3 in the counterclockwise direction)
- KTE 3089T (Circuit R)
- Fransco S01 4-hole
- Santa 4-hole switch (black wire is attached to terminal “L” and the terminal number sequence is L-1-2-3 in the counterclockwise direction
- Jin You 4-hole switch (black wire is attached to terminal “L” and the terminal number sequence is L-1-2-3 in the counterclockwise direction)
- YouYan E98999 (black wire is attached to terminal “L” and the terminal number sequence is L-1-2-3 in the counterclockwise direction)
Compatibility Notes
- Black wire (AC line/power) must be attached to terminal "L" on the old/existing switch, otherwise, this switch is not a compatible replacement.

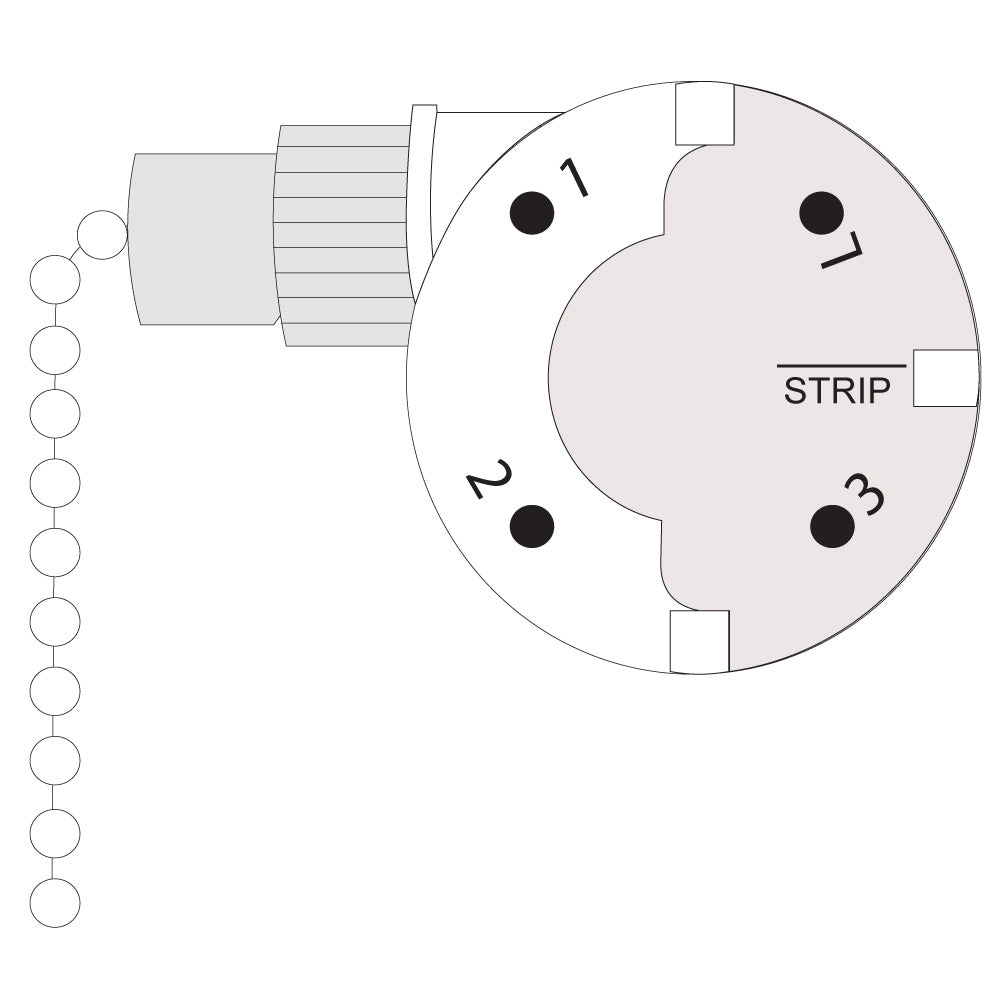

- The terminal number sequence on the old/existing switch must be 1-2-3-L in a counterclockwise direction; otherwise, this is not a compatible replacement.
- For more details on compatibility, please visit this page.
For wiring instructions, please visit this link
