Description

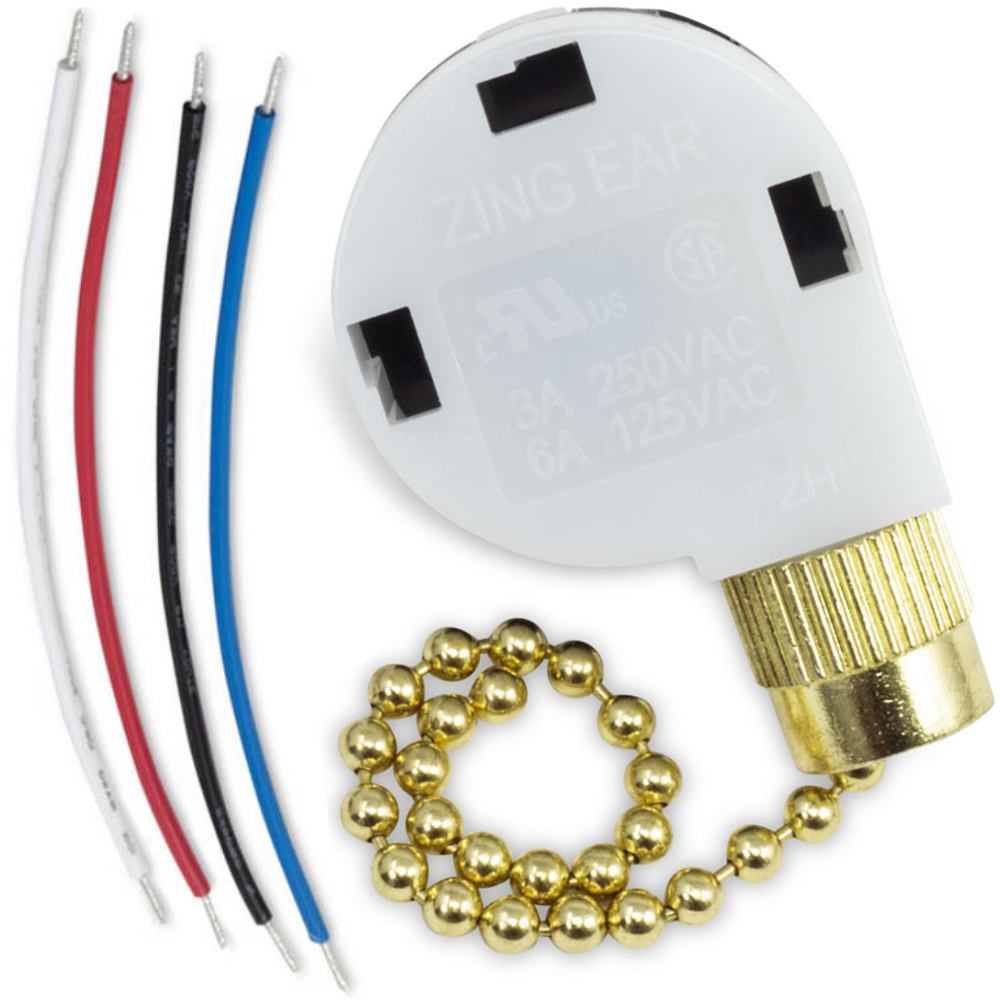

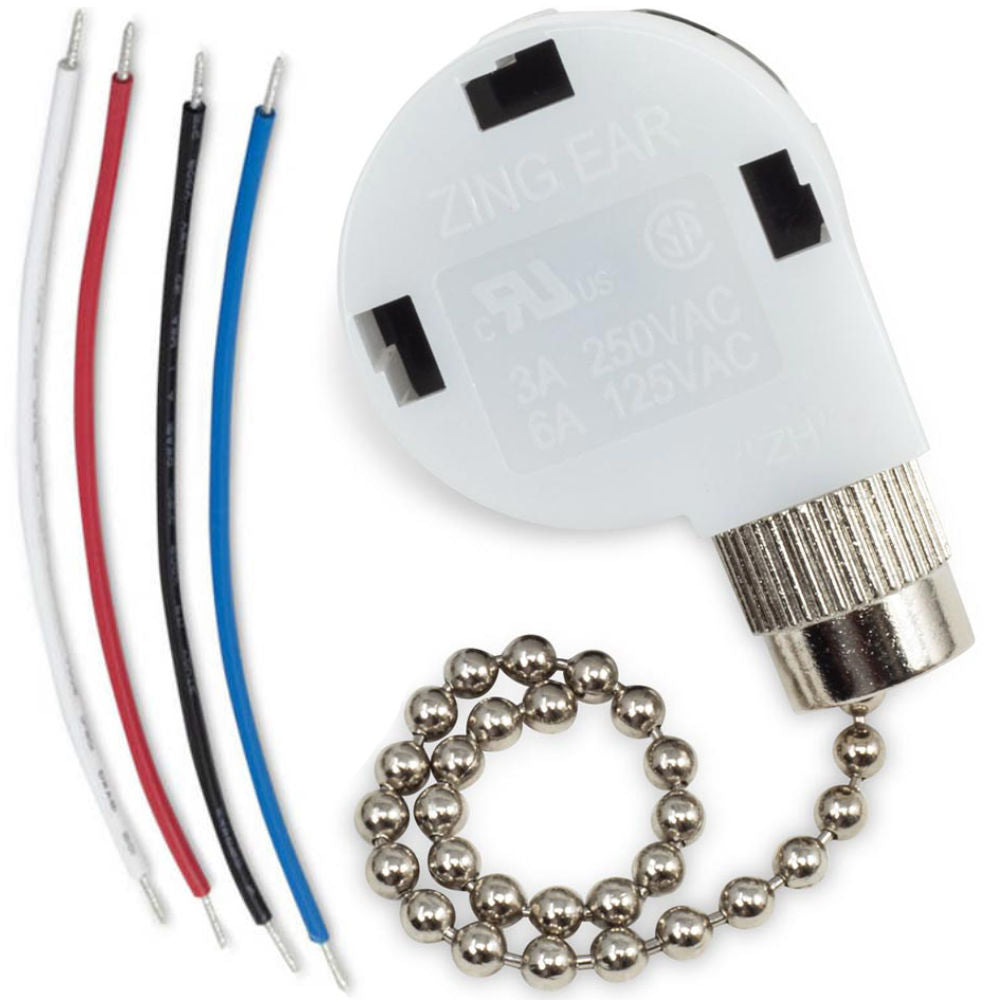

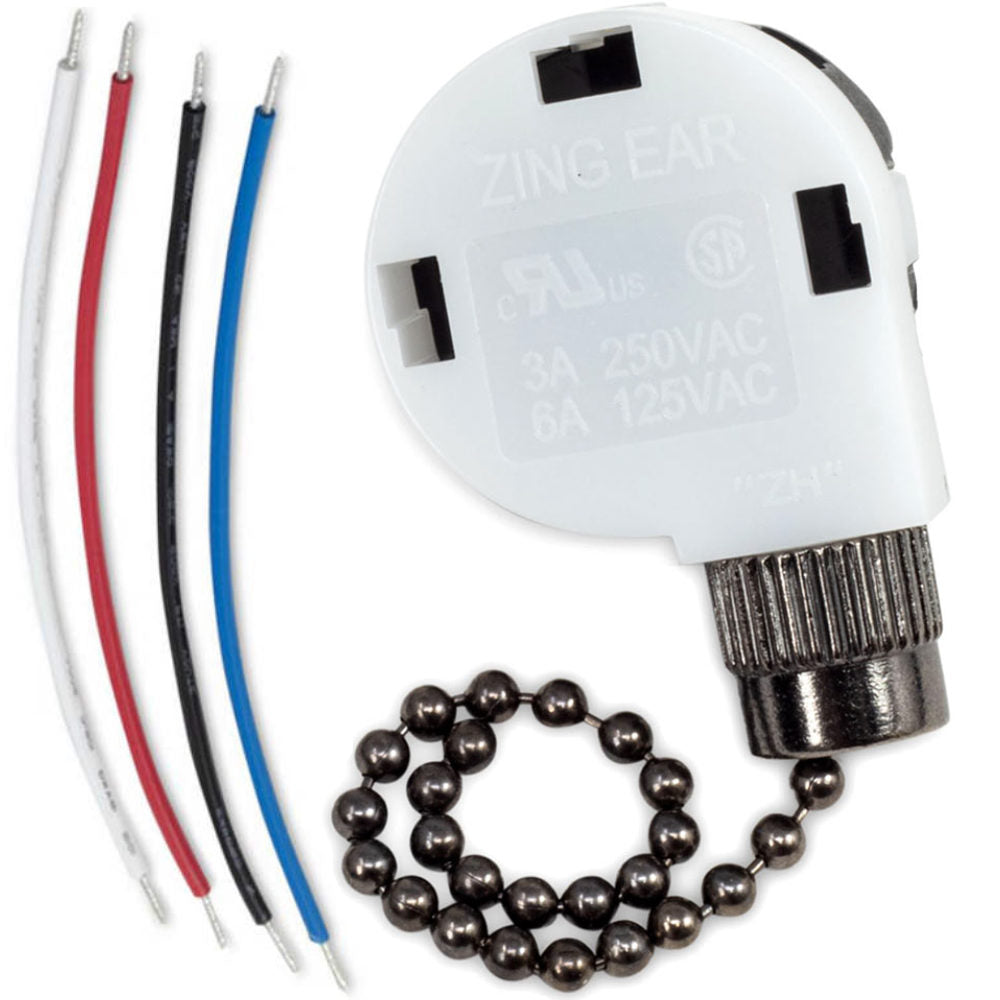

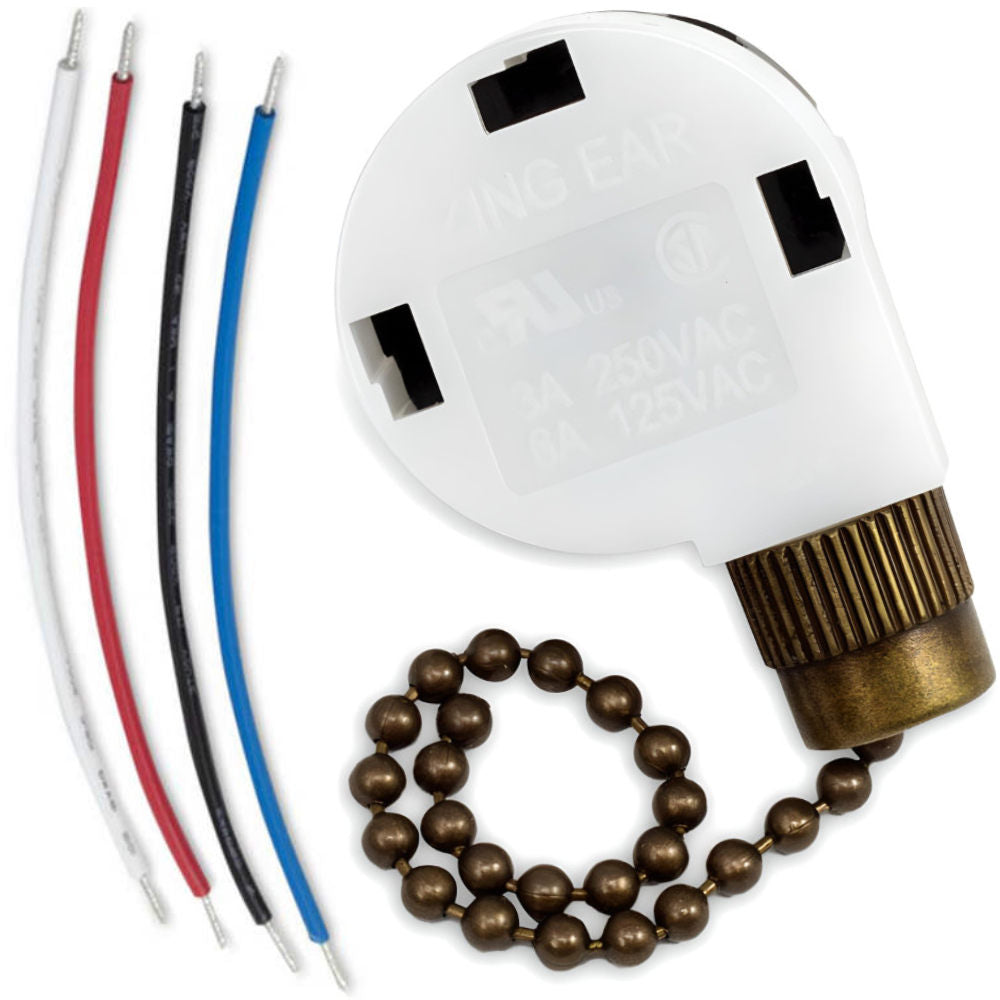

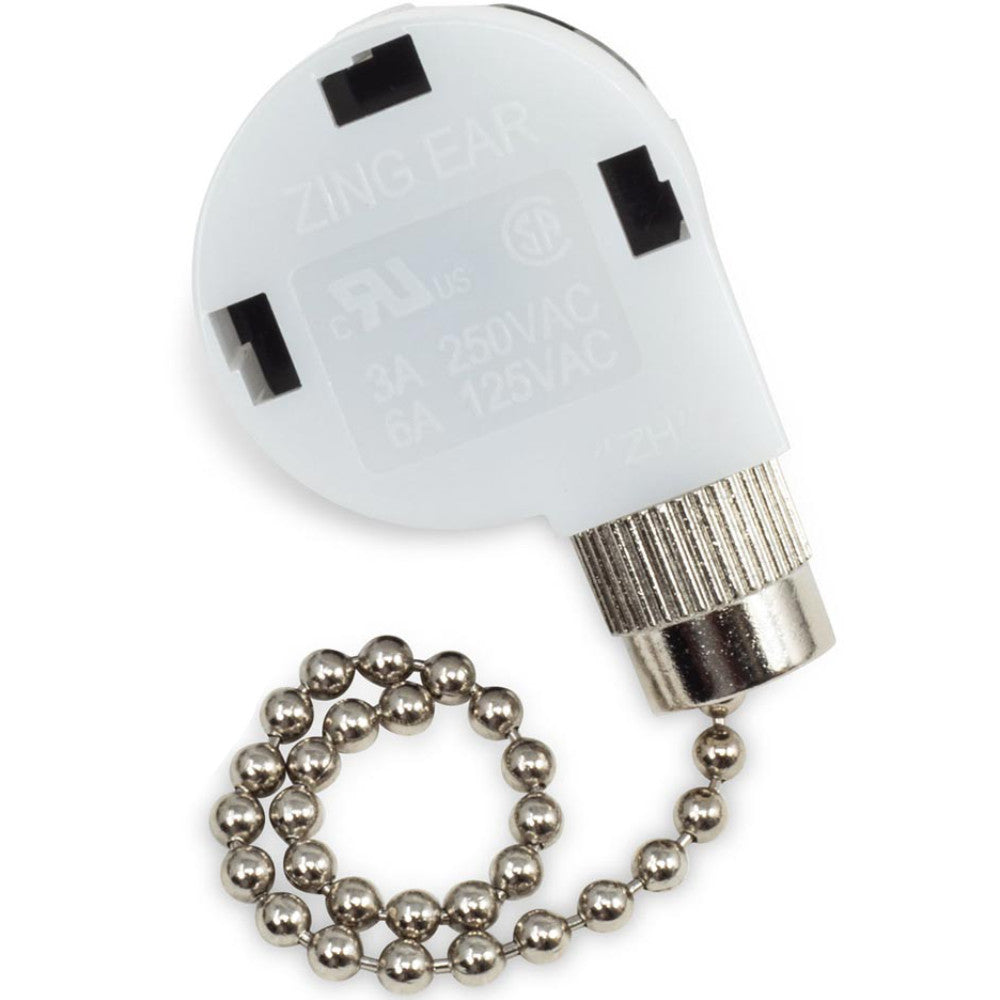

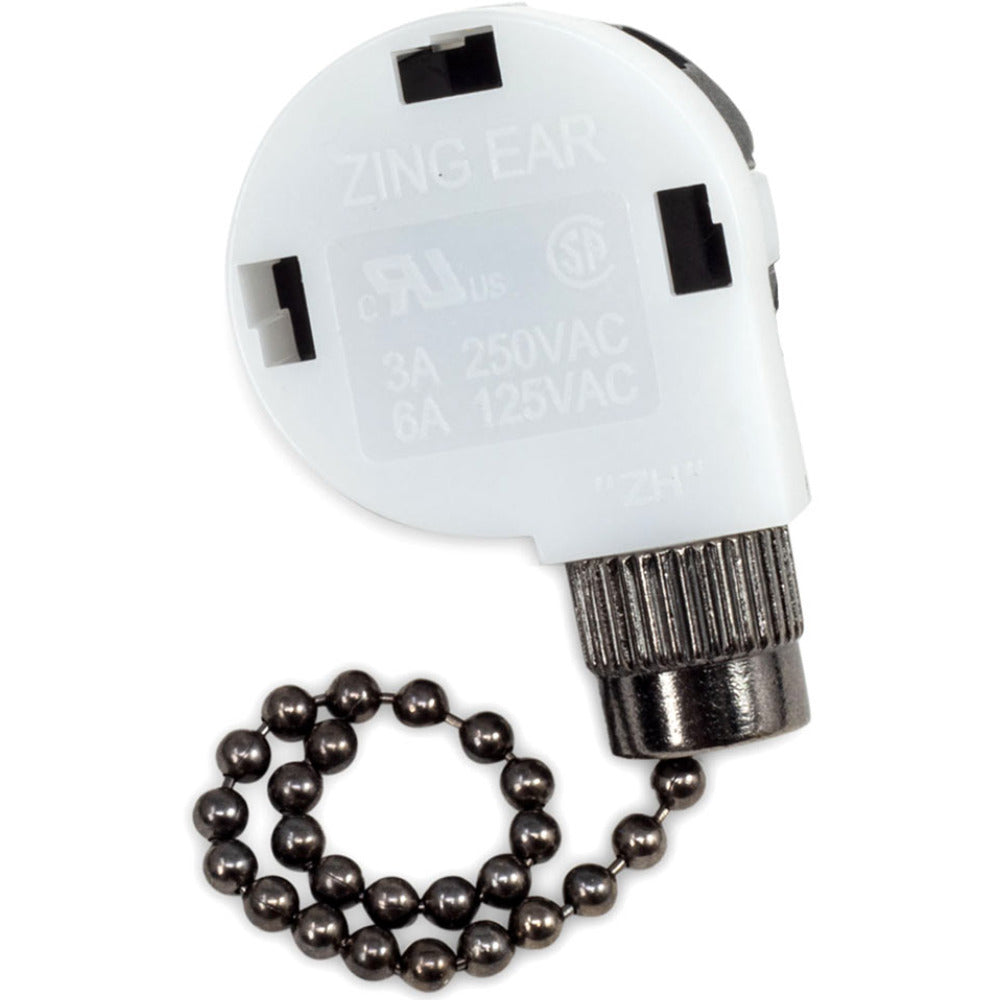

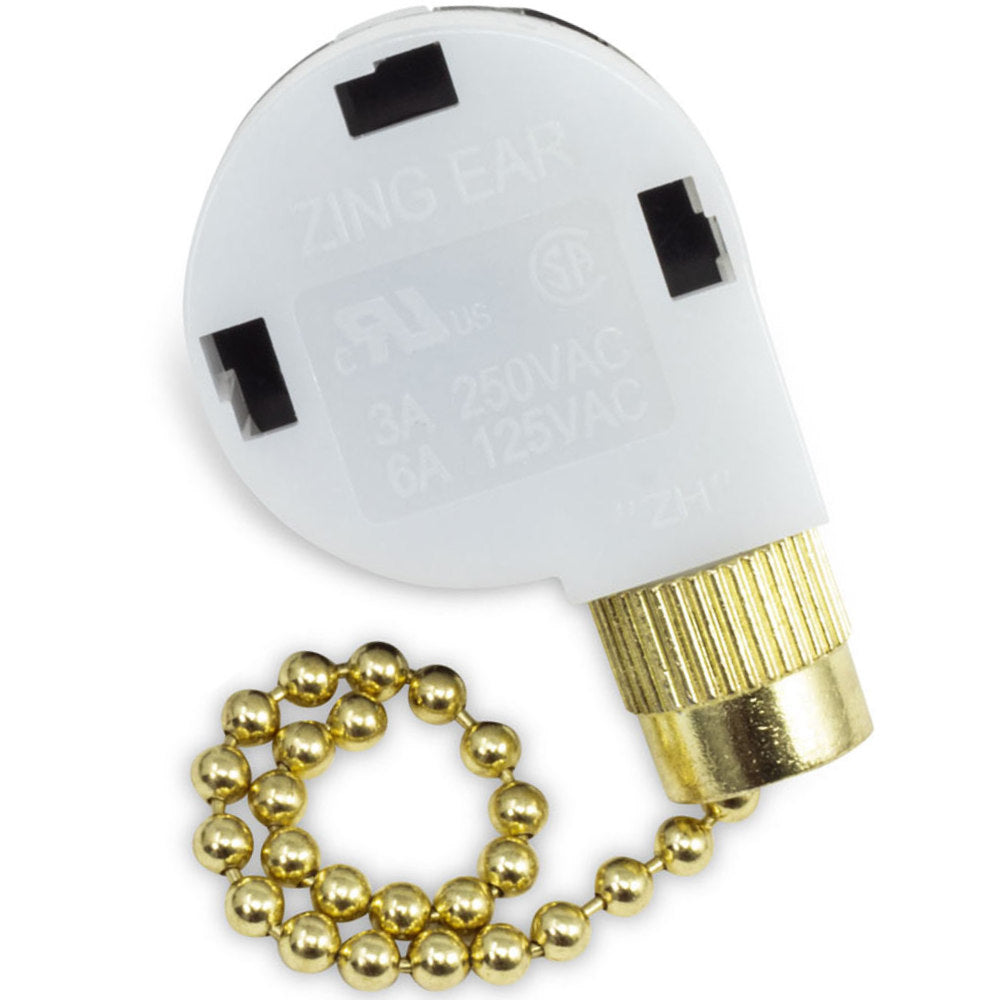

- Zing Ear ZE-268S2 ceiling fan 4 wire switch controls fan speed rotation by tugging the attached pull chain
- Compatible with ceiling fans from brands like:
- Westinghouse fans including model number: 7814500
- Hampton Bay fans including model numbers: AC 552 CH WHT and HX42MV-SL
- Hunter fans
- Harbor Breeze fans
- Casablanca fans
- SMC fans including model number F-52
- Includes four extension wires for extending the length of existing fan wires. The wire ends are pre-soldered for easy attachment to the switch
Zing Ear ZE-268S2 Specifications
- Condition: New
- Model number: ZE-268S2
- Electrical rating: 6A 125VAC - 3A 250VAC
- Function: Off, High, Medium, Low
- Internal positions: L-1-2-3, L-2-3, L-1-3, L-1-2
- UR (UL) recognized in US and Canada
- CSA approved
- Material: plastic housing
Compatible with
- Zing Ear ZE-208S2
- Zing Ear ZE-238S
- Zing Ear ZE-208S Gray/Black
- Zing Ear ZE-208S-A04
- Zing Ear ZE-208S Gray/Gray
- KTE 308A E87438, and 3089T circuit B 103 E87438
- Wu Pin LJY-280A
- Well Tec E116997 WTC-1
- Santa 4-hole 4-hole fan switch
- Jin You 4-hole fan switch
- Shine Top LS-102 E218558
- Sun-Lite SL-A-200C
- CAM-05 Gray/Black
- Defond 4-hole fan switch
Compatibility Notes

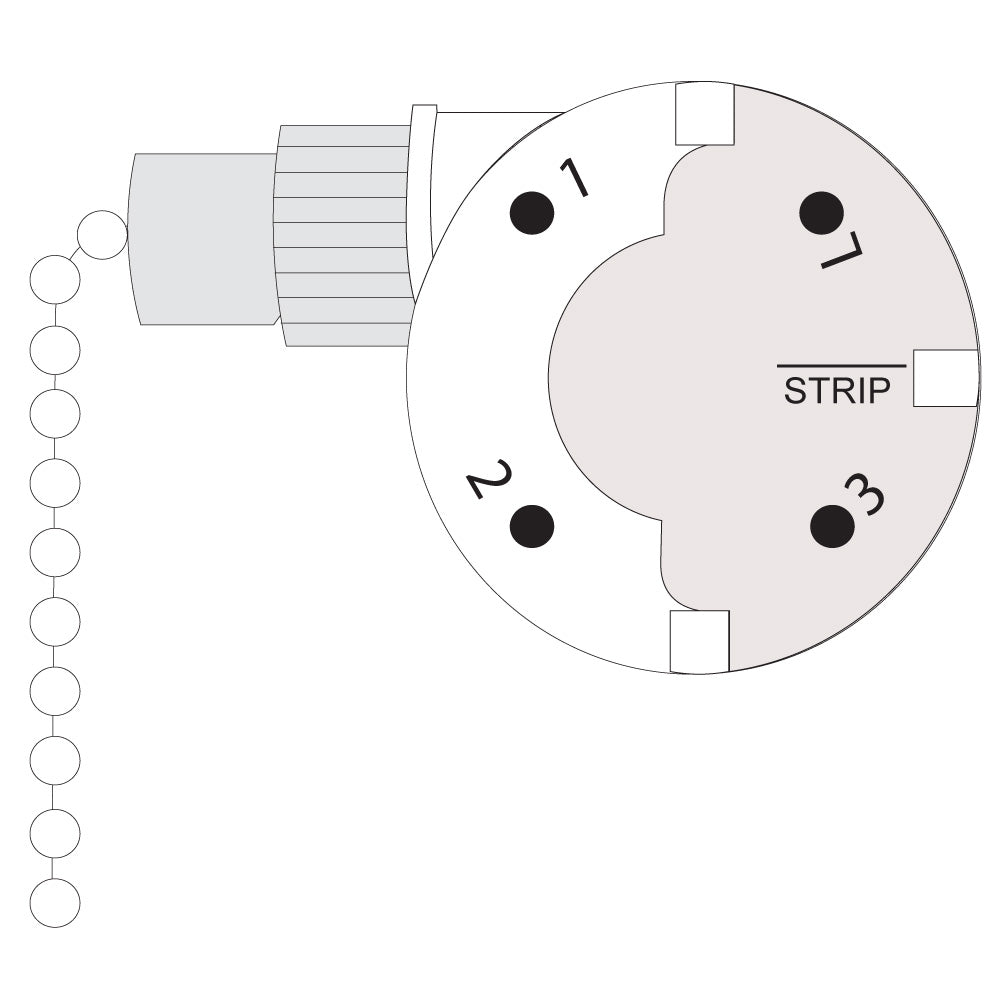

- Black wire (AC line/power) must be attached to terminal "3" on the old/existing switch, otherwise, this switch is not a compatible replacement.

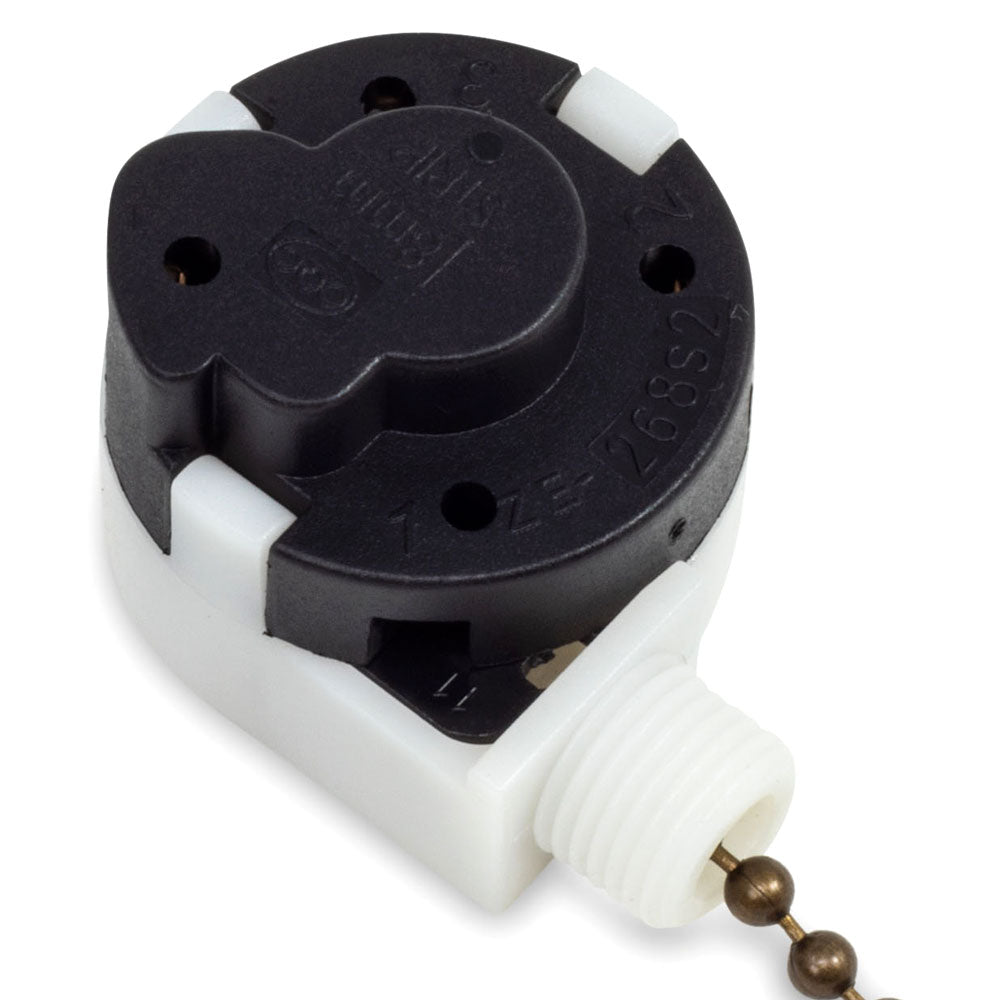

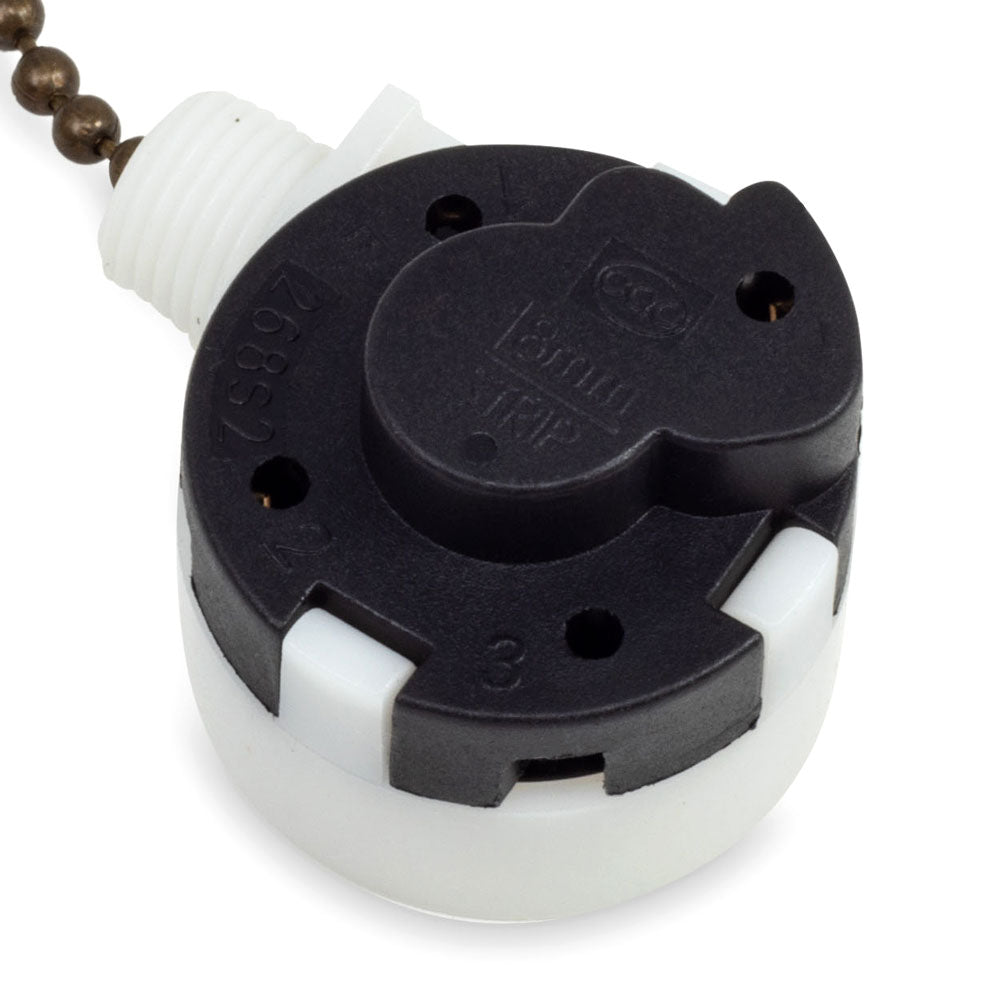

- The terminal number sequence on the old/existing switch must be 1-2-3-L in a counterclockwise direction; otherwise, this is not a compatible replacement.
For wiring instructions, please visit this page.
