ZE-268S6 and KTE 3089M 3 Speed Ceiling Fan Wiring Diagram

0 comments

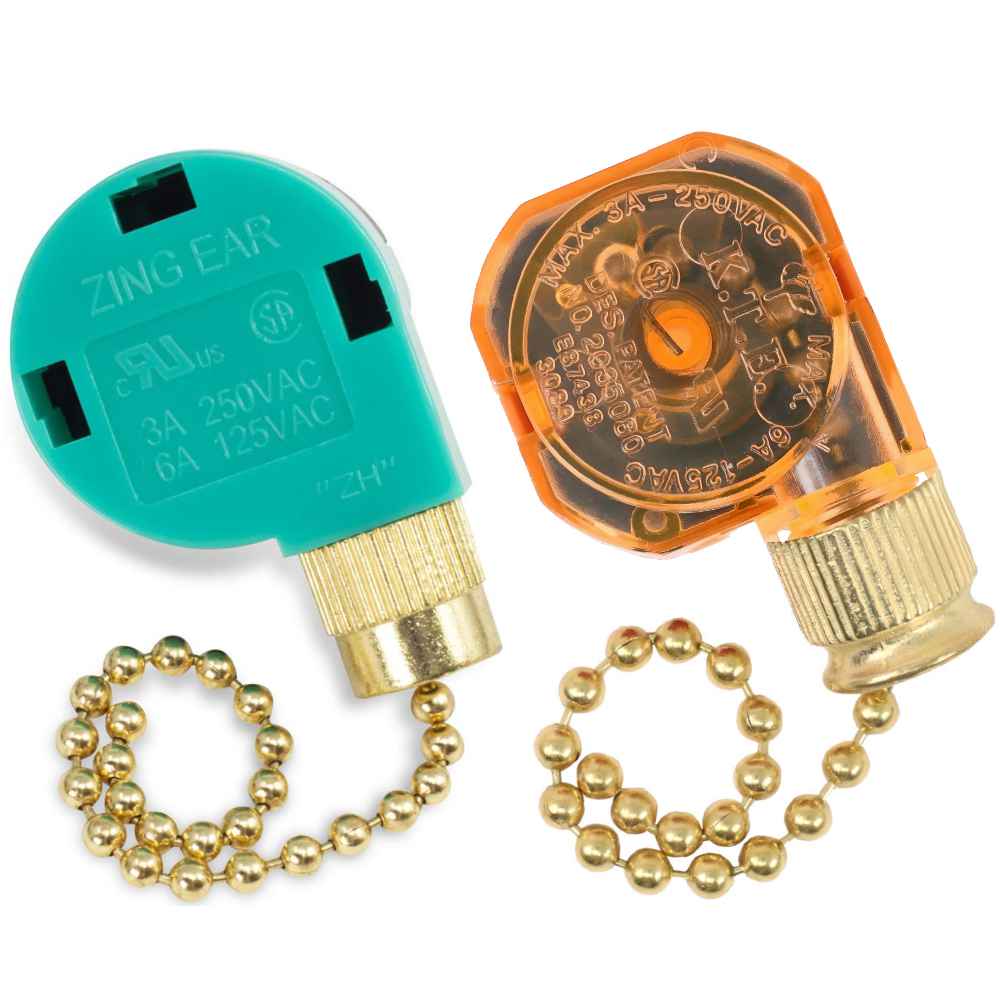

This 3 speed ceiling fan wiring diagram is for switches with four terminals as follows:

Terminal number sequence is 1-2-L-3 in counterclockwise direction
The black wire (AC line/power) is attached to terminal "L"
Internal positions: Off, L-1, L-2-3, L-3

If the old/existing switch does not have the same information as above, then these wiring instructions will not work.

Steps

Turn off electrical current at source. Failure to disconnect power may cause electrical shock, fire hazard, serious injury, or death
Do not cut the wires off the old switch. multi-strand wires are soldered together so they can be re-attached to the new switch
Take a note of the color of each wire and the terminal number they are attached to
Remove the wires from the old switch
Make sure that the wire lead length is the same length as the line beside word STRIP. If the the lead length is shorter, stripe the wire to make it the same length
Attach the wires to the new switch as noted in step 3. Wires should be inserted into the terminals on side of the switch not the holes on surface

3 Speed Ceiling Fan Wiring Diagram: Wire Color and Position Guide (Your Fan Wires Color & Position May Vary)

Wiring diagram for Harbor Breeze ceiling fan:

1= Gray, 2=Brown, L=Black (AC line/power), 3=Purple
1=Brown, 2=Gray, L=Black (AC line/power), 3=Purple
1= Yellow, 2=Pink, L=Black (AC line/power), 3=Gray
1= Yellow, 2=Pink, L=Black (AC line/power), 3=Gray
1= Gray, 2=Brown, L=Black (AC line/power), 3=Green

Wiring diagram for Hampton Bay ceiling fan:

1=Purple, 2=Brown, L=Black (AC line/power), 3=Gray
1=Gray, 2=Brown, L=Black (AC line/power), 3=Purple
1=Red, 2=Purple, L=Black (AC line/power), 3=Yellow
1=Orange, 2=Purple, L=Black (AC line/power), 3=Yellow
1=Gray, 2=Brown, L=Black (AC line/power), 3=Green

Wiring diagram for Hunter ceiling fan:

1=Gray, 2=Brown, L=Black (AC line/power), 3=Green
Green tea

Wiring diagram for Monte Carlo ceiling fan:

1=White, 2=Brown, L=Black (AC line/power), 3=Purple

Wiring diagram for Kichler ceiling fan:

1=Gray, 2=Brown, L=Black (AC line/power), 3=Purple

Wiring diagram for Home Decorators ceiling fan:

1=Black, 2=Red, L=Black (AC line/power), 3=Yellow

Wiring diagram for Minka Aire ceiling fan:

1=Gray, 2=Brown, L=Black (AC line/power), 3=Purple

Additional Wiring Guide (Your Fan Wires Position May Vary)

1: Attached to common wire from capacitor
2: Attached to larger/higher reading from the capacitor
L: Attached to Black wire (AC line/power)
3: Attached to smaller/lower reading from the capacitor

Capacitor Information (Your Capacitor May Vary)

The capacitor may have 4-5 wires with 2 or 3 microfarad (μF) readings, or 3 wires (different in color). The capacitor usually has 2 wires on one end: 2 Grays, 2 Yellows, or 2 Blacks. One of these wires is connected to terminal “1” on the switch.
